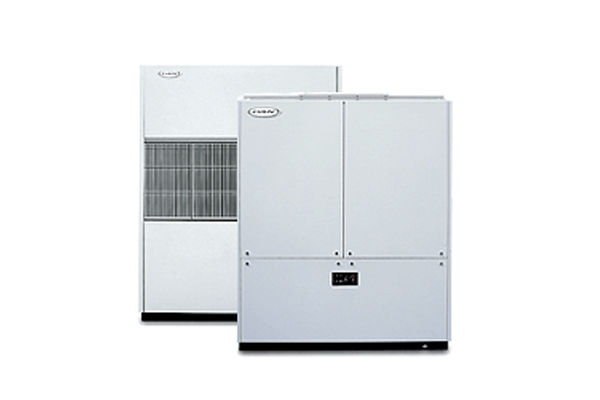

Very wide ranges and various models with air and/or water cooled
types for commercial, office
High energy efficient ratio
Silent operation using sirocco fan
Easy installation for duct free or duct type application
Anti-corrosion coating for condensing coil
– Capacity Range / Air-Cooled : 2 ~ 100RT
/ Water Cooled : 3 ~ 120RT
– Refrigerant : R22, R407c, R134a
UCE 30M : Cooling capacity : 8,000kcal/h, Power source : 3Ph 380V 50/60Hz
Size : 750 x 1,700 x 380 mm
UCE 50M : Cooling capacity : 12,500kcal/h, Power source : 3Ph 220/380V 50/60Hz
Size : 950 x 1,850 x 510 mm
– Duct type is available
UCE 80M : Cooling capacity : 20,000kcal/h, Power source : 3Ph 220/380V 50/60Hz
Size : 1,170 x 1,850 x 510 mm
– Duct type is available
UCE 100M : Cooling capacity : 25,000kcal/h, Power source : 3Ph 220/380V 50/60Hz
Size : 1,470 x 1,850 x 510 mm
– Duct type is available
UCE 150J : Cooling capacity : 40,000kcal/h, Power source : 3Ph 220/380V 50/60Hz
Size : 1,465 x 1,870 x 720 mm
UCE 200J : Cooling capacity : 50,000kcal/h, Power source : 3Ph 220/380V 50/60Hz
Size : 1,813 x 1,870 x 720 mm
– Free blow type is available
UCE 300J : Cooling capacity : 80,000kcal/h, Power source : 3Ph 220/380V 50/60Hz
Size : 1,810 x 1,900 x 1,050 mm
– Free blow type is available
Complete safety devices, Max. cooling with low cost, Low noise
